Easy-Laser E920

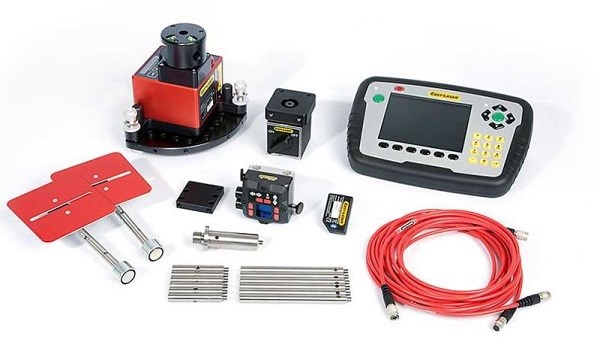

GeometricEasy-Laser® E920 is a complete system in itself, with laser transmitter, detector and display unit. But it is also an excellent starting point for creating a measurement system that suits your specific needs and requirements, because all the measurement programs are included as standard! Add extra laser transmitters, measuring units and brackets as well as other accessories from the wide Easy-Laser range. Now or in the future.
Measurement system for all types of geometric measurement
Easy-Laser® E920 can be used to carry out all the most common geometric measurements; straightness, flatness, squareness, plumb, and level. Measurement is quick and precise.
Displayed resolution is 0.001 mm [0.05 mils]. The laser transmitter is our well known big seller, the D22 with leveling table, strong magnetic feet, and a range of up to 40 m. The transmitter's laser beam can be compared to an absolutely straight and weightless ruler, that is to say, a perfect starting point for precision measurement. The swiveling laser head gives a laser plane parallel to the measured object and can also angle the laser beam 90° to the sweep for squareness measurement.
The display unit has a large and clear 5.7” color screen. The programs guide you step-by-step through the measuring process, which makes it easy even for inexperienced users. The system can provide full documentation, with the direct generation of PDF reports and database programs for PC, for example. The detector transfers the measurement data to the display unit wirelessly or by cable if required. The advantages of wireless are especially clear on mechanical constructions and objects where cables can snag or get in the way.
The most common method is to fix the laser transmitter to the measurement object using the mounting magnets or mounting it on a tripod (accessory) to one side. A pin is also provided to secure the laser transmitter to a machine spindle or equivalent, for instance, to check straightness and spindle alignment.
Technical overview
Display unit
| Name: | E51 |
| Part number: | 12-0418 |
| Type of display/size: | VGA 5.7” colour screen, backlit LED |
| Displayed resolution: | 0.001 mm/0.05 thou |
| Power management: | Endurio™ system for unbroken power supply |
| Internal battery (fixed): | Heavy duty Li Ion chargeable |
| Battery compartment: | For 4 x R14 (C) |
| Connections: | USB A, USB B, Easy-Laser® units, Charger |
| Operating temperature: | −10 to 50 °C |
| Communication: | BT wireless technology |
| Internal memory: | >100 000 measurements can be saved |
| Help functions: | Calculator, Unit converter |
| Environmental protection: | IP class 65 |
| Housing material: | PC/ABS + TPE |
| Dimensions (WxHxD): | 250x175x63 mm [9.8”x6.9”x2.5”] |
| Weight (without batteries): | 1080 g [2.4 lbs] |
Laser transmitter
| Name: | D22 |
| Part number: | 12-0022 |
| Type of laser: | Diode laser |
| Laser wavelength: | 630–680 nm, visible red light |
| Laser safety class: | Class 2 |
| Adjustable modulation: | 5, 32 KHz |
| Output: | < 1 mW |
| Beam diameter: | 6 mm [1/4”] at aperture |
| Working area, range: | 40-metre radius [130´] |
| Type of battery: | 1 x R14 (C) |
| Operating time/battery: | approx. 24 h |
| Levelling range: | ± 30 mm/m [± 1.7°] |
| 3 x spirit vials’ scaling: | 0.02 mm/m |
| Squareness between laser beams: | 0.01 mm/m [2 arc sec.] |
| Flatness of sweep: | 0.02 mm/m |
| Fine turning: | 0.1 mm/m [20 arc sec.] |
| 2 x spirit vials for rotation: | 5 mm/m |
| Housing material: | Anodized aluminium |
| Dimensions (WxHxD): | 139x169x139 mm [5.47”x6.64”x5.47”] |
| Weight: | 2650 g [5.8 lbs] |
Detectors
| Name: | E7 |
| Part number: | 12-0752 |
| Communication: | Wireless unit 12-0436 (separate item) or cable |
| Type of detector: | 2 axis PSD 20x20 mm [0.78" sq] |
| Resolution: | 0.001 mm [0.05 mils] |
| Measurement accuracy: | ±1µm ±1% |
| Inclinometers: | 0.1° resolution |
| Thermal sensor: | ± 1 °C accuracy |
| Environmental protection: | IP class 66 and 67 |
| Internal battery: | Li Ion |
| Operating temperature: | −10 to 50 °C |
| Protection: | No influence from ambient light |
| Housing material: | Anodized aluminium, plastics |
| Dimensions (WxHxD): | 60x60x42 mm [2.36x2.36x1.65”] |
| Weight: | 186 g [6.6 oz] |
Wireless unit
| Name: | Wireless unit for E7, E5, E4, ES, EM, ESH, EMH |
| Part number: | 12-0436 |
| Communication: | BT wireless technology |
| Temperature range: | −10 to 50 °C |
| Environmental protection: | IP class 66 and 67 |
| Housing material: | ABS |
| Dimensions (WxHxD): | 53x32x24 mm [2.1"x1.2"x0.9"] |
| Weight: | 25 g [0.9 oz] |
